Newport Elementary/Middle School --- New Matamoras, Ohio

The Elementary and Middle schools have an approximate size of 75,000 sq. ft. and are served by five main variable air volume air handling units with terminal boxes and reheat coils The Heating plant for the building is composed of two 3,000 MBH flexible water tube boilers and a 210-ton air-cooled chiller with 30% ethylene glycol. Heat recovery wheels are used to recover sensible and latent heat from the relief air of the building.

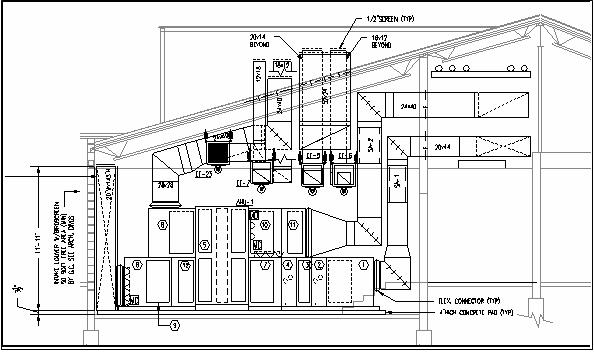

Partial section view of Mechanical Room

Mechanical layout of Gymnasium
